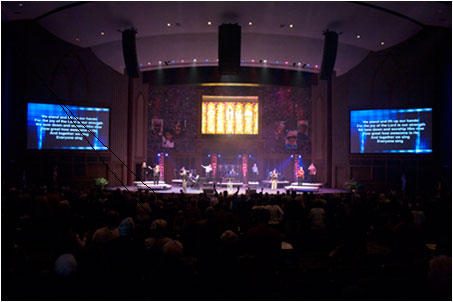

Bethesda Christian Church, Sterling Heights,
MI
A 3,000 seat auditorium built in a fan shape design with
dual mezzanine and a large bi-level balcony. The task of providing
even coverage was formidable. Grecco determined that a true
LCR system with dual stereo imaging through out the room would
conquer the task. To achieve this, Grecco hung three 11 box
line arrays with dual-stereo wings in a LCR configuration supported
by 16 sub cabinets and 8 front fills.
Products Used:
Center Cluster: (11) Dual 12 inch Self Powered Line Array
boxes
Left/Right Cluster: (11) Single 12 inch Self Powered Line Array
boxes
Front Fills: (6) 3-way 6 inch Self Powered boxes
Subs: (16) Dual 18 inch Self Powered, (8 in reverse poloraity
for pattern control).
Wings (44) Self Powered Wing boxes for reverse left and right
imaging. |

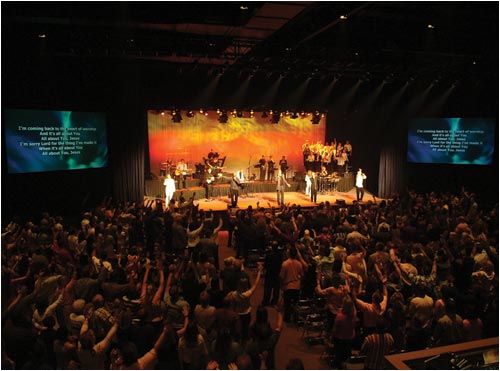

Celebration Covenant Church, Frisco,
TX 5.1 Surround
Constructed as a “theatrical performance” room
with a strong emphasis on intelligent lighting and video projection,
Celebration Covenant Church’s 5.1 surround sound audio

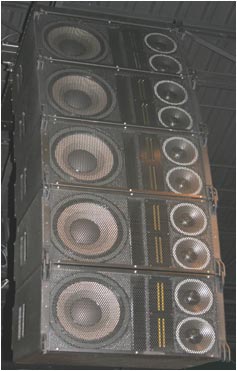

was an obvious format to choose. Grecco designed three 7 box
line arrays in front to provide the LCR imaging with dual trap
box clusters in the LR and RR positions. Six front fills and
six dual 18 subs completed the system. “We are media
heavy here at Celebration Covenant Church with nearly all of
our video presentations mixed in 5.1. During our live worship,
I mix in percussion and effects in the Left-Rear and Right-Rear
channels to create a huge atmosphere for our congregants. We
love the crystal clear sound from Grecco’s speakers and
most especially from the ribbon tweeters which are pure joy
to listen to and mix on” says Danny Beaver, audio engineer
at Celebration Covenant Church - Frisco, TX. |
|
|
|
|

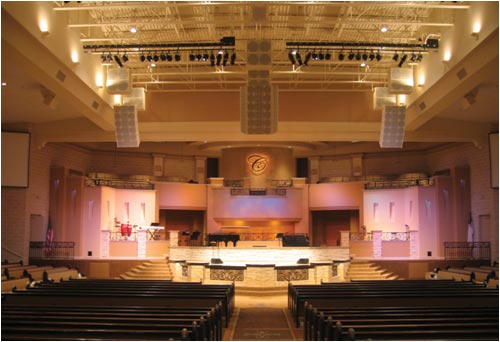

Covenant Church, Carrollton,
TX 5.1 Surround Sound d
Using over 300 speaker components throughout Covenant Church’s
2,500-seat auditorium, Grecco employed a sophisticated 21 cabinet
line array system with dual-stereo wings set in a LCR configuration.
The system also employs 12 dual 18 inch subs, 10 trap boxes
in the balcony’s fascia for surround channels, 20 trap
boxes for balcony coverage, 4 front fills and 8 monitors. It
also boosts one of the first custom made personal headphone
systems ever installed in a church (before the launch of Aviom).
In addition there are two FM transmitters and personal Walkman-style
FM receivers for the 100 voice choir to eliminate 100% of wedge
volume from the platform. The system has a total of 72,500
watts of amplifier power providing crystal clean frequency
response. Since ribbon drivers present very low amounts of
distortion, it is not uncommon for the high-energy worship
services at Covenant Church to be operating at 110 dB SPL in
the house!
The room is tuned with Whisper Walls ® core and acoustical
designer fabric as well as four dual 18 inch cabinets in reverse
polarity strategically placed and delayed to help control the
low frequency build-up in the room. FOH engineer Stan George
states, “Mixing on these speakers is like [taking] a
walk in the park. I do not have to overwork EQ to make the
instruments and vocals sound as they naturally do. I only wish
I had a system like this I could take on the road with me when
I am out on tour.”
Hidden behind the fabric in the fascia of the balcony are
the 10 trap boxes used for surround sound; four speakers beneath
the rear room balcony and three speakers beneath both the left
and right side balconies facing diagonally to the stage. The
digital console and the audio distribution system can be configured
to provide completely separate sends to each of the speakers
creating nearly limitless signal patterns (i.e. 5.1, 6.1, 10.1,
etc.). |

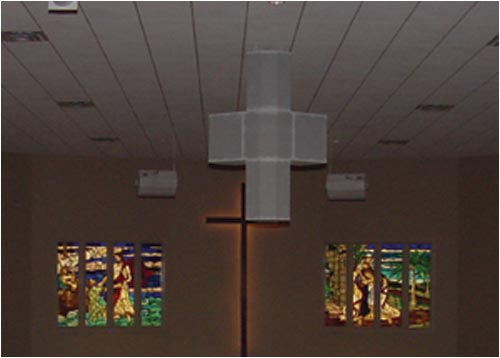

Dayton United Methodist
Dayton United Methodist has the
same cluster design used at Netropolis Youth Facility in
Carrollton TX. This design has three compression drivers
in the center that are mounted to asymmetric down firing
horns. The mids are comprised of 12 inch mid drivers that
are horn loaded as well. The two cabinets on top and below
hold dual 12 inch woofers. The cluster is self powered with
all Class D amplifiers. Six under balcony boxes wer used
as well as 6 Wedge Trap 12’s for over balcony. There
are (4) dual 15 inch subs in the stage front and several
W/T 12’s for floor monitors. |
Faith Chapel – San Diego, CA

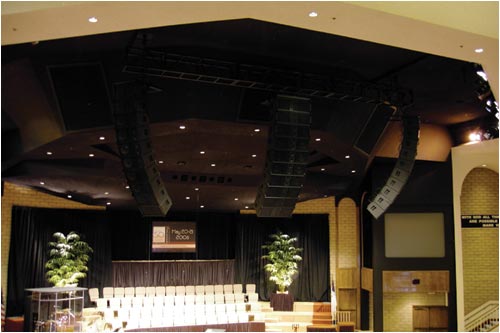

Faith chapel is a unique installation. It’s basically
a large touring rig left in position when the tour was over.
A lighting truss was pulled up and permanently left in place
with three large ribbon self powered line array clusters. Eight
dual 18-inch subs are buried under the stage, with front fills
set into the stairs. This is a 2500 seat room, with a ton of
PA… |

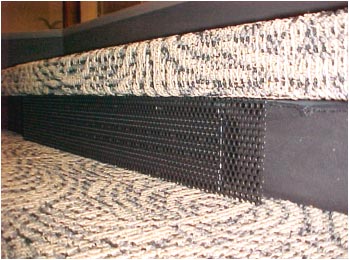

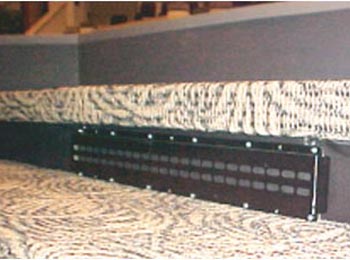

Sections of the 80’ planar device
underneath stage steps used as front fills.

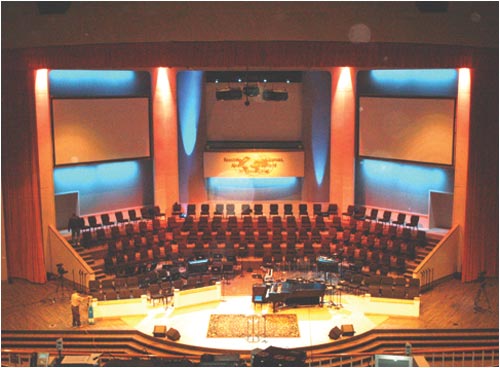

First Baptist Church – Springdale, AR |

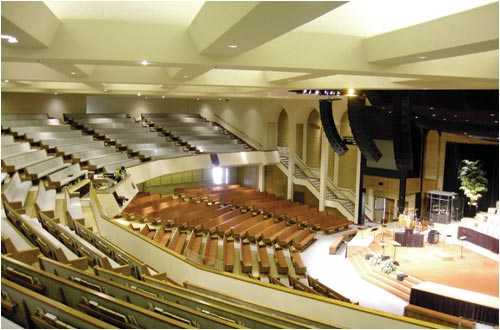

First Baptist Church of Springdale
Arkansas
(Pastor Ronnie Floyd), is
a 16,000 member congregation in northwest Arkansas. The room
seats close to 3000. Grecco used three main clusters consisting
of dual 6 inch mid drivers, (horn loaded for pattern control)
with horn loaded compression drivers between the large mid
horns. The low end was provided by line array moduals of dual
12 inch woofers side by side and six tall. This was a very
large cluster. Since everything is hidden by the scrim, we
can only show you the back of the boxes. The DSP is providing
all the LCR cross matrixing. There is an 80 foot long line
source ribbon embedded in the front step for front fill use
and 8 dual 18 inch subs under the platform. |

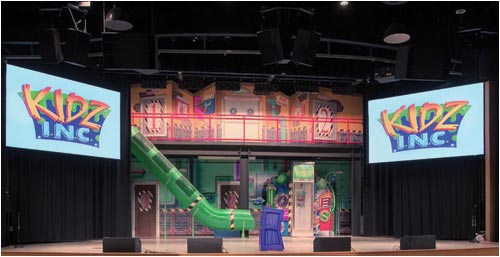

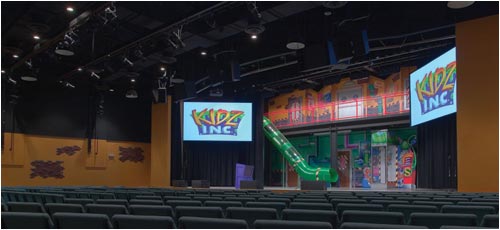

Kidz Inc. is the 500 seat
childrens room at First Baptist Springdale. For this installation
Media Merge of Birmingham, AL used 6 wedge Traps in the air
for a left, center, right configuration, four floor monitors,
and two horn loaded dual 12 subs in the air. They won the award
in 2006. |

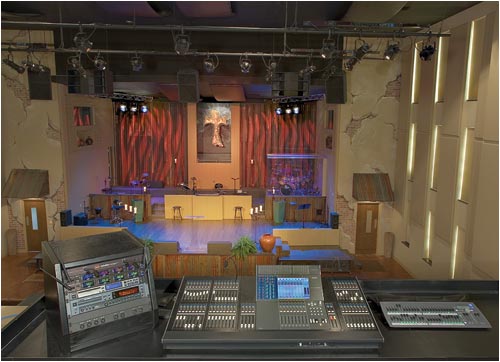

The Foundry Rescue Mission
in Bessemer, Alabama
The Foundry Rescue Mission
in Bessemer, Alabama, completed the renovation of their worship
facility including a powerful theatrical lighting system, a
high-def video system and 5.1 surround sound. The main cluster
were three Installation Series boxes, and two dual 12 inch
horn loaded subs. The surround system utilized Dual Wedge Trap
six boxes. |

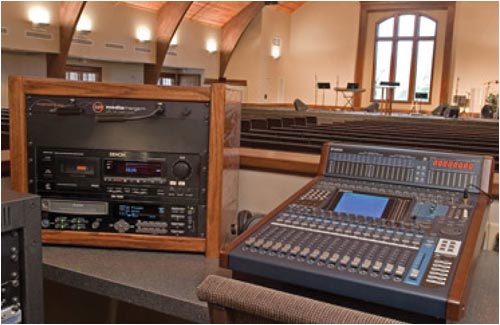

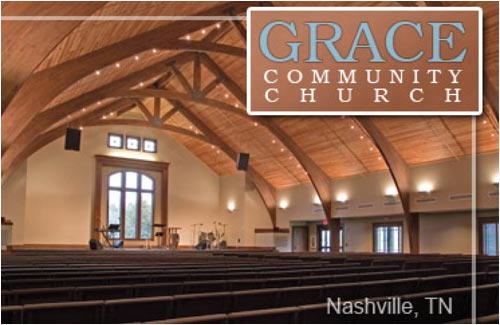

Grace
Community Church in Nashville, Tennessee
Grace
Community Church in Nashville, Tennessee, recently completed the
construction of a new
worship facility. The Installation Series boxes were used in stereo.
There are also dual 18 inch subs. |

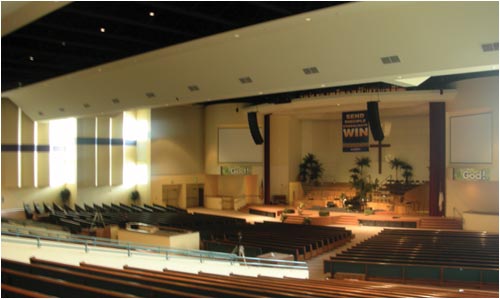

Neotropolis Covenant Church - Carrollton, TX

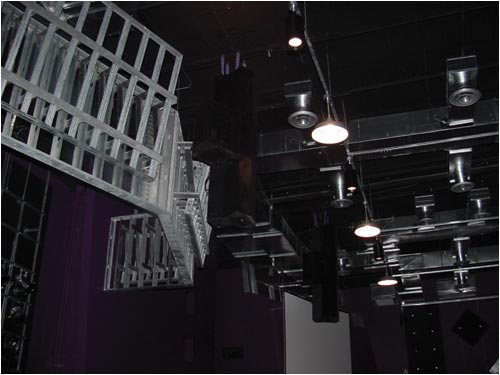

Neotropolis is the youth facility at Celebration Covenant
Church in Carrollton TX. This was previously a movie theater
complex that the church purchased and converted into a youth
center. The large room seats 500. Grecco used three multi firing
point source clusters that provided a true left center right

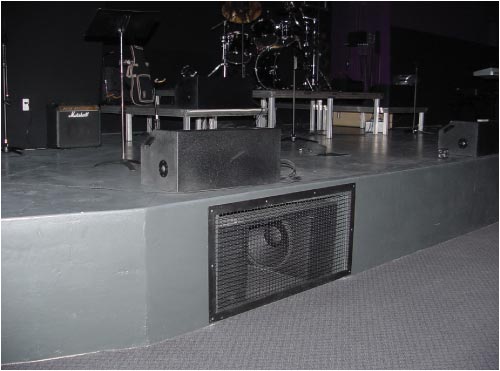

configuration. There are four dual 18- inch subs in the stage
front and multiple floor monitors, all of the boxes are self
powered. |
Trinity Life Center - Sacramento, CA
Trinity life center is a stereo line array installation. The
room was very deep, 140 feet to the back wall and seats 2500.
Grecco used two 9-box self powered ribbon line arrays, and
8 dual 18-inch self powered subs under the front stage, as
well as several powered floor monitors. He also did extensive
acoustic work in this facility
|
Turning Point Church in McDonough,
Georgia

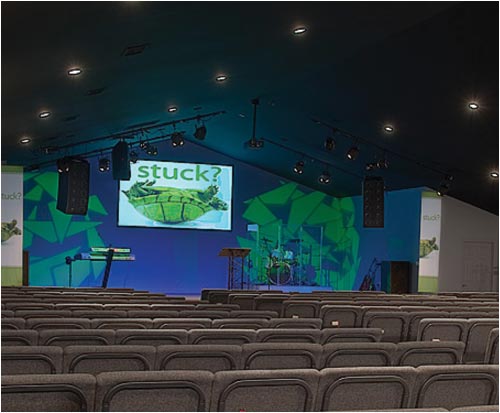

Turning Point Church in McDonough,
Georgia, recently completed construction of a new 300 seat
worship center including new sound, video and lighting systems.

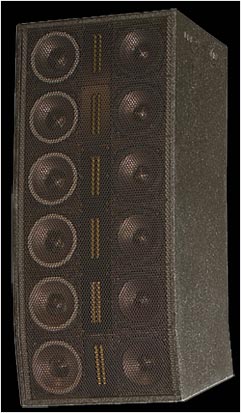

The mains were custom built mini line arrays. The six inch
ribbon is flanked by two six inch drivers. One is a mid range
driver and the other is a woofer. The box was self powered.
There are also two self powered dual 18 inch subs on stage. |
Westgate Chapel has three sound systems.
Main Sanctuary Products:
Center Cluster: (3) Installation Series Self Powered Boxes
Front Fills: (4) 3-way Self Powered 6 inch Boxes
Subs: (2) Dual 18 inch Self Powered Boxes
Floor Monitors: (6) W/T 12’s

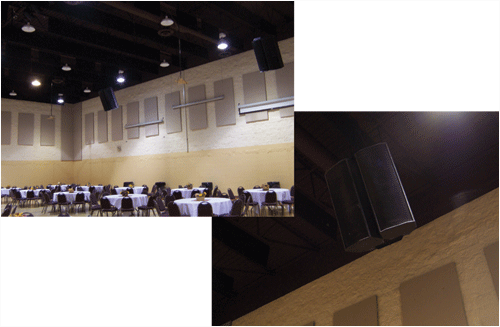

Commons Fellowship Hall:
Left/Right Clusters: (2) Wedge/Trap 15 inch Self Powered Boxes
Subs: (2) Dual 18 inch Self Powered Boxes
Floor Monitors: (2) W/T 12’s
Portable System:
Left/Right: (4) W/T 12’s
|

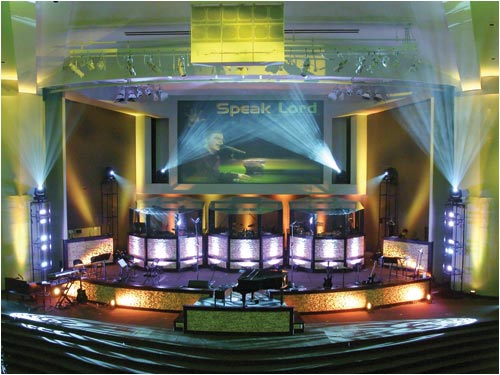

Word of Life Christian Center, Denver CO

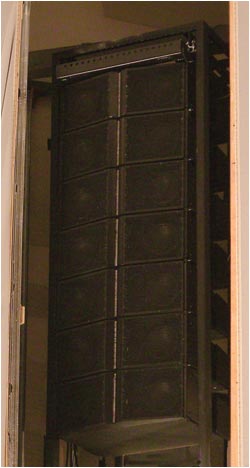

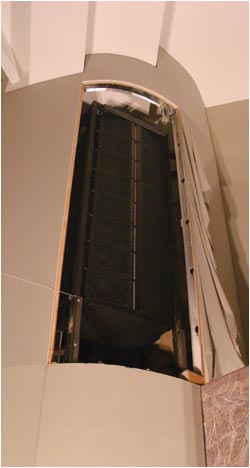

Word of Life has two eight box line arrays behind covered
columns on each side of the stage. This is a unique install
because the line arrays are actually behind the pulpit and
stage area where the singer stand on Sunday. Yet because of
the pattern control of this box, there is no gain before feedback
issue in this facility. The subs are flown dual 12’s
over the pulpit with six boxes facing forward and three inverted
boxes firing backwards for pattern control. |
|
|
