Most of what I do today involves special projects. Sometimes you just need something custom made. There are many fine speaker companies in the world of pro audio today, but most companies are not equipped to do small custom projects.

When it comes to loudspeakers, amplifiers and DSP, I have been able to assemble some of the brightest minds in the world to help me create products specific to your needs. While there is an established product line, (which is always expanding), you can also request special variations of the line for your client. There are several examples of this with one of my dealers in Birmingham AL. Almost all their boxes were custom. Pull from the greatest woofers ever designed. If you like Ribbons, I have the best… No doubt, the best ribbon on the planet… All my amps are digital, and include a DSP option if you want plug a play boxes. We have been offering digital amps for over a decade, and know it well. I don’t buy products; we design them in house and have them made by the best facilities in the world.

Every item in my product line is designed and built by our people. Woofers, Ribbons, Rigging, Amplifiers, DSP, Crossovers, Boxes, and Horns are designed and built in house. The only product that is, “off the self” is the BMS compression driver.

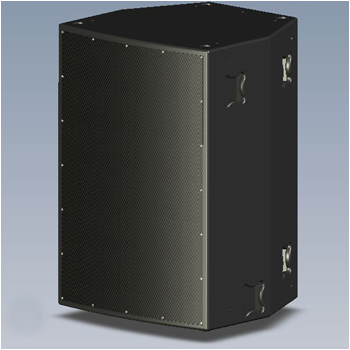

Installation Series:

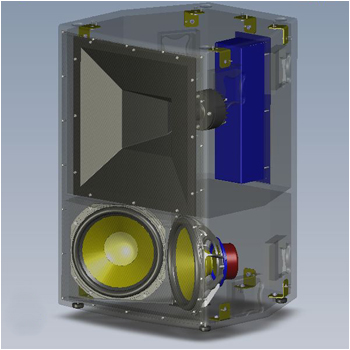

This 3-way self-powered system features a high output BMS 4594 coaxial compression driver with a rotatable horn. Coverage patterns of 60x45, 60x60, 90x45 and 90x60 are available complimented by dual 12” low frequency drivers. The tri-amped module provides a total of 1,500 watts of power and is currently offered with 3 discrete analog inputs or a single XLR full range input with on board DSP providing crossover, EQ, alignment and limiting.

top

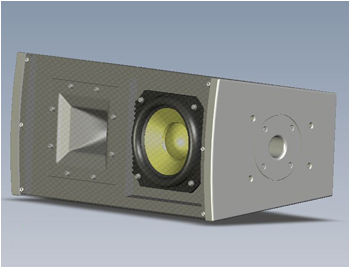

2 - Way Wedge-Trap Series:

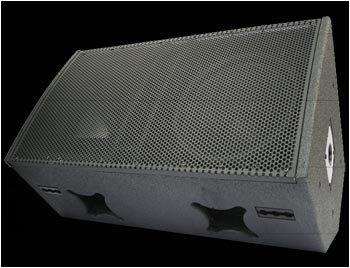

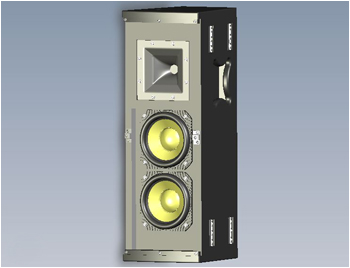

The Wedge-Trap Series offers the widest range of products in the line. They feature a high output compression driver with a rotatable horn. Coverage patterns of 60x45, 60x60, 90x45 and 90x60 are available. The smaller enclosures offer single or dual 6 ½” or 8” woofers in a 2 ½ way crossover configuration. Meaning that the woofer closest to the tweeter is reaching the mid band crossover point, while the second woofer farther away from the tweeter is only producing the lower bass frequencies. The tri-amped module provides a total of 750 watts of power and is currently offered with 2 discrete analog inputs or a single XLR full range input with on board DSP providing crossover, EQ, alignment and limiting.

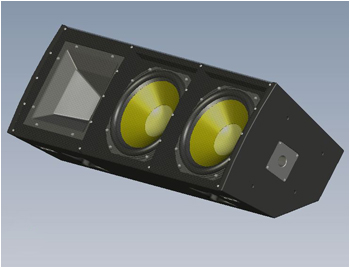

3 - Way Wedge Trap Series

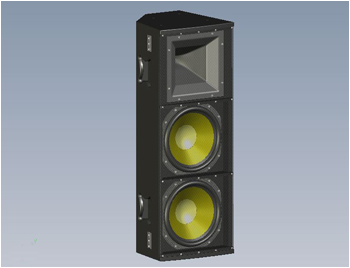

The 12” and 15” woofer versions are also available in dual woofer configurations and feature the BMS 4594 coaxial compression driver with a rotatable horn. Coverage patterns of 60x45, 60x60, 90x45 and 90x60 are available. This versatile enclosure design allows for a myriad of uses in installations and touring applications including creating point source clusters, LCR, surround sound and even mounting on a tripod-pole system. The tri-amped module provides a total of 1,000 watts of power and is currently offered with 3 discrete analog inputs or a single XLR full range input with on board DSP providing crossover, EQ, alignment and limiting.

top

Directivity Control Series:

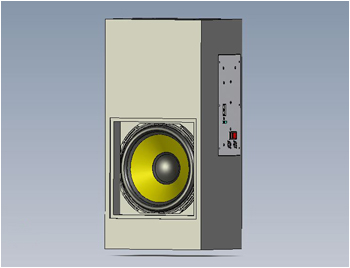

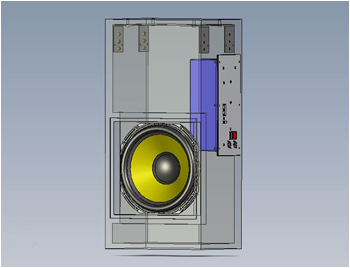

These enclosures are to be used in arrays of the Installation Series or the 12 & 15-inch version of the Wedge-Trap Series enclosures. They employ a side-firing woofer in a box of minimal width so as to not dramatically increase the footprint of the array. These enclosures and their rigging systems are designed so that they may be precisely positioned relative to the woofers in the primary array enclosures. This geometrical arrangement, along with specialized DSP settings, allows directivity control of the total array to extend into the low frequency region.

top

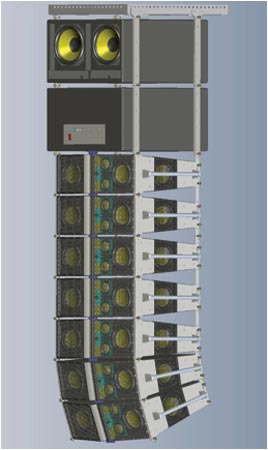

Line Array shown with Dual 12 inch Subs.
One flown backwards for low frequency pattern control.

Line Array:

The Line Array is a 4-way self-powered enclosure featuring quad 8” woofers and quad 4.5” mid range drivers with an 11.5” David Graebener designed ribbon driver. The quad-amped module provides a total of 4,000 watts of power and is currently offered with 4 discrete analog inputs, or a single XLR full range input with on board DSP providing crossover, EQ, alignment and limiting. The signal to the side firing woofers can be processed to yield low frequency pattern control. This, the geometrical spacing of the other components and the selected crossover points give this line array module a 100-degree pattern in the horizontal plane down to 100 Hz; virtually it’s entire pass band. Dimensions 32.5 in. (w) x 11.5 in. (h) x 27.5 in. (d) and 145 lbs.

top

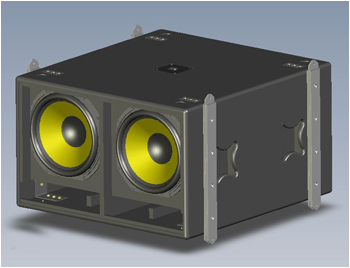

Subwoofer Series:

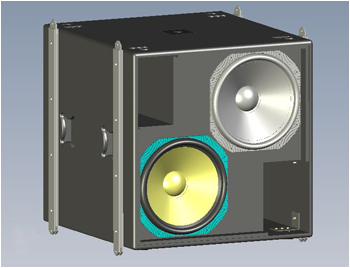

The Subwoofer Series offers two different enclosures. A choice of dual 12-inch drivers or dual 15-inch drivers. Each of the subwoofer products pack an incredible 2,000 watts of power and produces high SPL for sustained periods of time. Both sub woofer designs are flyable from the line array bumper bar. Using two bumper bars (one forward, one backwards), they can be flown to create a cardioid pattern for low frequency control.

top

Front Fill Series:

The Front Fill Series offers a low profile, 2-way enclosure with dual 4.5” woofers accompanied with a compression driver fitted to a rotatable 90x60 or 90x90 coverage horns. A 90x180 slot device is also available for extremely wide HF coverage applications. The low profile of this box makes it the perfect solution for under/in stairs, under balcony or under stage applications.
